new to jd350,looking for parts sources

Post support questions about your JD350 and newer crawler here
Post Reply
User avatar
glindy
40C crawler
40C crawler
Posts: 22
Joined: Tue Sep 18, 2012 9:51 pm
Location: STL

new to jd350,looking for parts sources

Post by glindy » Thu Sep 20, 2012 12:10 am

Picked up decent running 70s 350 crawler loader,which needs lots of routine mt.
Had to fix dash gauges,lights,switches,main harness,etc.etc. But alternator#
AT21808 22AMP MOTOROLA,was not producing voltage. Took off and it spins free,assume it needs brushes,but cannot find a place to get them.
Anyone know a place with decent prices that would have them?

Thanks

Waiting on ordered service manual, as owners manual only covers so much info.

User avatar
Paul45
430 crawler
430 crawler
Posts: 73
Joined: Thu Nov 06, 2008 11:44 am
Location: North Java New York

Post by Paul45 » Thu Sep 20, 2012 7:09 am

If you have not yet, I would take it to an auto parts store and have it tested. I dont believe that alternator has brushes. Have you checked your voltage regulator? Are you sure all the re wiring you did was correct? Good Luck
thanks Paul

350 track loader, 350 dozer

User avatar
glindy
40C crawler
40C crawler
Posts: 22
Joined: Tue Sep 18, 2012 9:51 pm
Location: STL

Post by glindy » Thu Sep 20, 2012 11:55 am

I tested it running and output is just bat voltage,12.6.
Called deere and they do have brushes,BUT deere no longer carries them. It is # AT23187 for the set. Someone should have them for rebuild jobs.
350 loader

User avatar
glindy
40C crawler
40C crawler
Posts: 22
Joined: Tue Sep 18, 2012 9:51 pm
Location: STL

Post by glindy » Thu Sep 20, 2012 8:22 pm

Actually I have issues other than the brushes,on taking it apart,they are ok.

So I retested wires to alt,main output wire has only bat voltage-
feild (green) has 12.6 with key on,but on connecting to alt ,drops to ~4v-
gnd(black) has no continuity to gnd when regulator is connected,but with key on it has 12.6v-
aux(yellow)has 12v with key on,but~3v when plugged to alt.
Don't think ground wire should have 12.6 volts from reg.

I disconnected all main wires and hooked field terminal to 12v jump box,output has box voltage running,aux maxes out at ~2v or so.

Sure would be nice to find a built in reg alt,eliminate stock voltage reg,wire field to key on ,ground it and hook up output.
350 loader

User avatar
Lavoy
Site Admin
Site Admin
Posts: 11108
Joined: Sun Apr 03, 2005 8:32 pm
Location: North Dakota
Contact:

Post by Lavoy » Fri Sep 21, 2012 8:57 am

Why not just replace it with a one wire 10SI Delco. They are readily available at most auto parts stores for well under $100.
Lavoy
Parts and restoration for antique and late model John Deere crawlers.
Owner and moderator www.jdcrawlers.com

User avatar
glindy
40C crawler
40C crawler
Posts: 22
Joined: Tue Sep 18, 2012 9:51 pm
Location: STL

Post by glindy » Tue Sep 25, 2012 5:35 pm

Lavoy,

Took your idea, picked up a 10si1w and it fit the bracket w no mods. Had to locate a 5/8 pulley to fit and used a 3.1 in dia, for less than $100 bucks. Taped up all the excess wires,hooked up the output. Started tractor and had nothing,until revved up a bit,then has more than enough power for anything you want to wire up when exciter kicked in.

Thanks for the help.
Lindy
350 loader

User avatar
Lavoy
Site Admin
Site Admin
Posts: 11108
Joined: Sun Apr 03, 2005 8:32 pm
Location: North Dakota
Contact:

Post by Lavoy » Wed Sep 26, 2012 6:24 am

Where they fit, they work great, and no hassles.
Lavoy
Parts and restoration for antique and late model John Deere crawlers.
Owner and moderator www.jdcrawlers.com

jdemaris

Re: new to jd350,looking for parts sources

Post by jdemaris » Wed Sep 26, 2012 10:36 am

glindy wrote:Picked up decent running 70s 350 crawler loader,which needs lots of routine mt.
Had to fix dash gauges,lights,switches,main harness,etc.etc. But alternator#
AT21808 22AMP MOTOROLA,was not producing voltage. Took off and it spins free,assume it needs brushes,but cannot find a place to get them.
Anyone know a place with decent prices that would have them?

Thanks

Waiting on ordered service manual, as owners manual only covers so much info.
I realize you already replaced the alternator. A few comments anyway. All the parts are easily available from many generic sources. The original setup on your crawler used a separate remote-mounted regulator. Also - all alternators on Deere tractors have brushes. In fact ALL alternators on cars and trucks have brushes.

Replacing with a 10SI - or better yet - a Delco 12SI is fine but will not be as durable as the Motorola. The OEM Motorola alternator is sealed from dust and has full ball bearing support. The Delco 10SI or much better 12SI is NOT sealed and does not have ball bearings in the back. Deere tried using them for a short period of time with add-on dust-cages but they did not hold up well.

You can buy brand new replacement, sealed, HD Bosch or Hitachi replacement alternators for Deere crawlers with internal regulators for $85. That's brand new, not rebuilt and dust sealed.

jdemaris

Re: new to jd350,looking for parts sources

Post by jdemaris » Wed Sep 26, 2012 3:49 pm

glindy wrote:Picked up decent running 70s 350 crawler loader,which needs lots of routine mt.
Had to fix dash gauges,lights,switches,main harness,etc.etc. But alternator#
AT21808 22AMP MOTOROLA,was not producing voltage. Took off and it spins free,assume it needs brushes,but cannot find a place to get them.
Anyone know a place with decent prices that would have them?
.
For anybody that feels the need to fix the OEM alternator on Deere crawlers - the 22 amp sealed HD Motorola alternator is now made by Prestolite (formerly Leece-Neville). It's a common alternator used on many small engines, refrigeration units, and even a few old Mack trucks.
Prestolite bought all the rights to the alternator from Motorola many years ago.

The 22 amp on a 350 was a Motorola TA12N series and was replaced with the 30 amp 8TA2009EE. All parts are available from Prestolite or aftermarket places like Transpo.

The original remote mounted Deere voltage regulator was Motorola R2J1, RS2J1, or 8RD2017. It is also available aftermarket. It is a 12 volt B-circuit type and even some NAPA Echlin units will work if you change the wire-plug. For a direct replacement - a Transpo M5-216 is the correct unit. Fits many Deere crawlers and farm tractors. A new regulator can be found for $25.

The sealed Motorola alternators usually just need a new set of $10 brushes and mabye a pair of generic $15 ball bearings.

That being said - you can buy a brand new, modern dust-sealed, internally regulated HD alternator with full ball bearing support inside for $75-$85 if you shop around.

User avatar
Willyr
2010 crawler
2010 crawler
Posts: 695
Joined: Sat Jul 17, 2010 3:03 am
Location: Downeast Maine (North of Ellsworth)

Post by Willyr » Wed Sep 26, 2012 3:54 pm

Actually a delco alternator from NAPA is less than $50. (70 amp)

former owner of a 1956 420c
All help is greatly appreciated.

Proud owner of a project 1952 JD 60

http://www.youtube.com/watch?v=nFehqXVd9z4

jdemaris

Post by jdemaris » Wed Sep 26, 2012 4:16 pm

Willyr wrote:Actually a delco alternator from NAPA is less than $50. (70 amp)

I don't believe it. Not outright and not new, for sure.

A "rebuilt" 78 amp Delco from NAPA is $100 outright or $70 if you trade in an old one. A brand new 78 amp Delco from NAPA is $95.

If a Delco 10SI is what someone wants - you can buy a brand-new one with the self-exciting "one wire" regulator installed for $68 from DB Electric.

A Delco SI series is fine for occaisional use in a crawler but not very good for hard use where there is lots of dust. It's an open-air alternator and dust chews up the brushes and cheap needle bearing in back pretty fast. It is also bulky and does not fit in many tractors. No problem in a Deere crawler though.

Hey, to each his own. I've got buckets full of 10SIs and the better 12SIs. I can buy more for $15 each and the one-wire regulator new only costs $10. So they can be easily thrown together for $25. That wasn't my point.

User avatar
Willyr
2010 crawler
2010 crawler
Posts: 695
Joined: Sat Jul 17, 2010 3:03 am
Location: Downeast Maine (North of Ellsworth)

Post by Willyr » Wed Sep 26, 2012 5:54 pm

The alternator pictured above I bought around June for $47.89+tx from the NAPA store on Route One in Ellsworth Maine this year.

You can get NEW CHROME CHEVELLE ALTERNATOR 110 AMP 3 WIRE 65-85 SELF EXCITING ENERGIZING

$57.90 on amazon.

http://www.amazon.com/CHROME-CHEVELLE-A ... alternator

former owner of a 1956 420c
All help is greatly appreciated.

Proud owner of a project 1952 JD 60

http://www.youtube.com/watch?v=nFehqXVd9z4

jdemaris

Post by jdemaris » Wed Sep 26, 2012 6:18 pm

Willyr wrote:The alternator pictured above I bought around June for $47.89+tx from the NAPA store on Route One in Ellsworth Maine this year.

You can get NEW CHROME CHEVELLE ALTERNATOR 110 AMP 3 WIRE 65-85 SELF EXCITING ENERGIZING

$57.90 on amazon.
I'm not sure what the point of all this is? I gave some info on how to fix the OEM Motorola alternator if someone wants to.

About your claims about NAPA. NAPA is a franchise and has standard part #s and prices for NAPA authorized parts. But - NAPA store owners can also sellother things that do not come directly from NAPA. So, yeah - you can travel the country and find all sorts of things at stores with a NAPA sign out front. A friend of mine owns the local NAPA store here and sells many parts that come from totally different sources.

Now -with the many new alternators sold as "Delco 10SIs." Technically that are not. They are Chinese clones and copies. That does not make them inferior - but they are not actually Delco 10SIs.

Again - so what?

I made a few simple points that are accurate. I'm not telling anyone what to do or what I claim is best. Just offering info and options with facts.

If you have an OEM sealed Motorola alternator -you CAN get all the parts fairly cheap to fix if you want. The Motorola or Leece Neville/Prestolite is much more durable than any Delco 10SI or 12SI - from Delco Remy or clones. Working steadily in dust tears up the Delcos. I'm not saying that matters to everyone - but it is true, just the same.

John Deere Co. tried using the Delcos for a few years on agricultural equipment along with added debris-screen guards. It did not work and they were short lived. Deere switched to Bosch, NippoDenso and Hitachi. All of which have full ball bearing support. The Delco 10SI and 12SI series does not.

kedorland
430 crawler
430 crawler
Posts: 95
Joined: Thu Jan 12, 2012 7:29 pm
Location: Iowa

Post by kedorland » Wed Sep 26, 2012 9:35 pm

I appreciate the detailed information very much.

Will prove to very helpful when mine gives issues.

Thank you.

Kevin from Iowa.
1975 450C. 1977 450CA loader, with winch and log arch. Is true..tracked equipment is addicting.

jdemaris

Alternators on Deere crawlers

Post by jdemaris » Thu Sep 27, 2012 11:37 am

Here's the newer version of what Deere 350 and 450 crawlers came from. Prestolite/Leece Neville bought out Motorola years ago. The original 22 amp TA12N Motorola is now a 30 amp 8TA Prestolite.

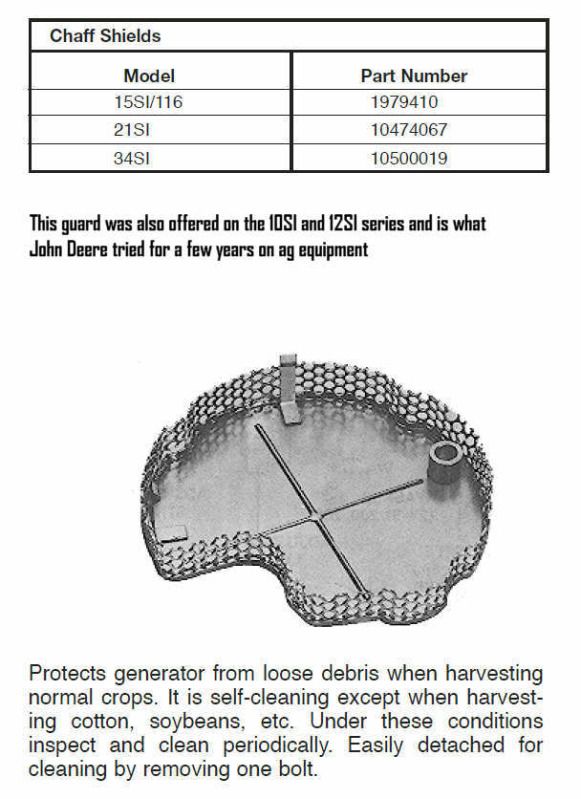

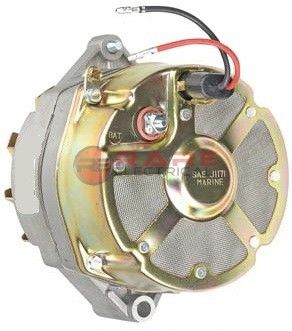

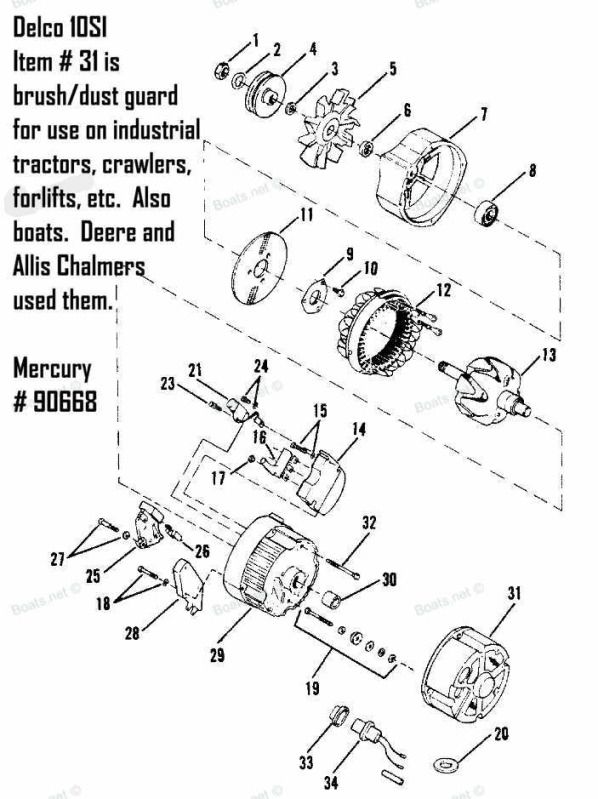

The Delco 10SI and 12SI was never designed to work well in dusty environments. It lacks any sealing and also lacks full ball bearing support. John Deere, Allis Chalmers, and Mercury Marine used them for awhile with special dust guards installed. For farm and forestry use they did not work well on Deeres. 10SI is a cheap unit. Easy to work on, cheap to buy and for certain uses.




Delco made the 5SI and 7SI "sealed" series for use in dusty environments (like on crawlers).


The other problem with the old Delco 10SI and 12SI is size. On many tractors, they don't fit well. Too big and bulkly. The Delco CS121 series is much more compact and durable.

Here's the footprint on the original alternator on the Deere 350

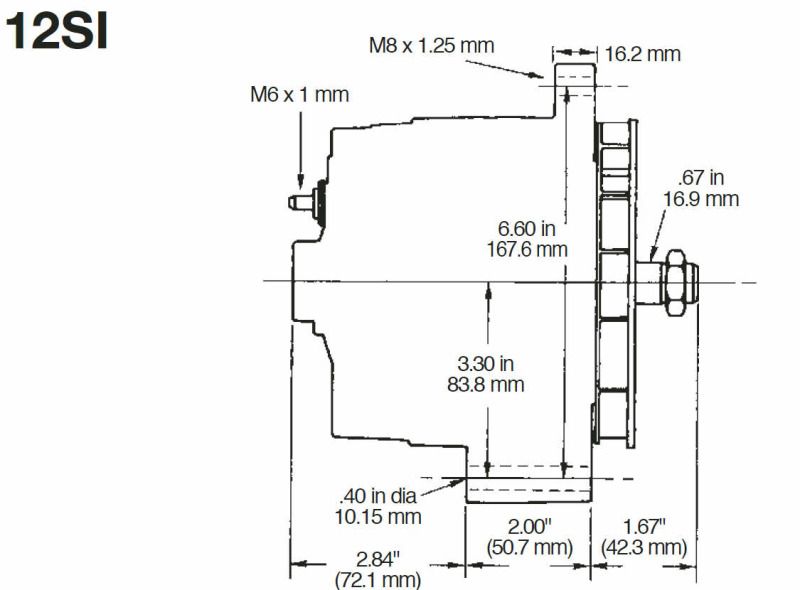

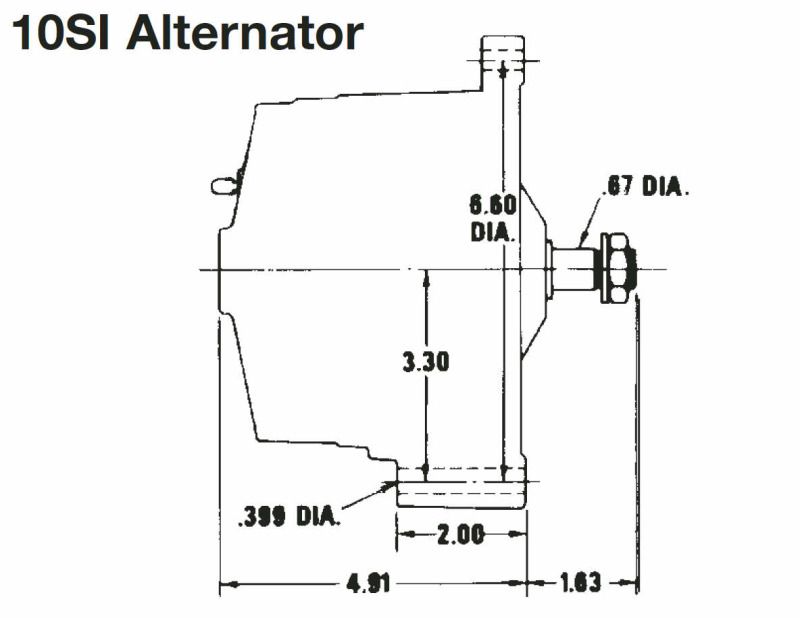

Here are the foot prints of the old Delcos

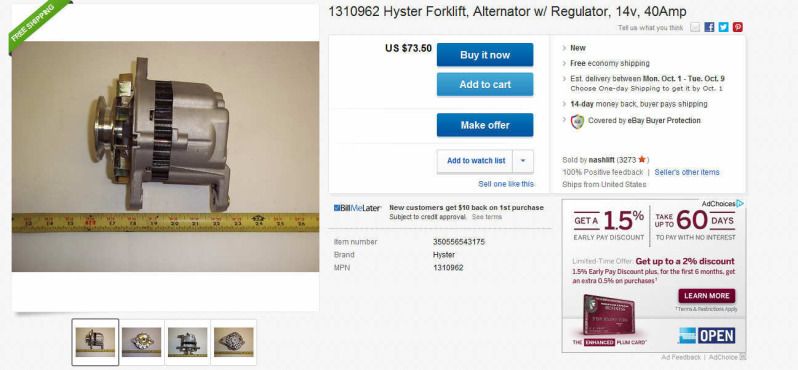

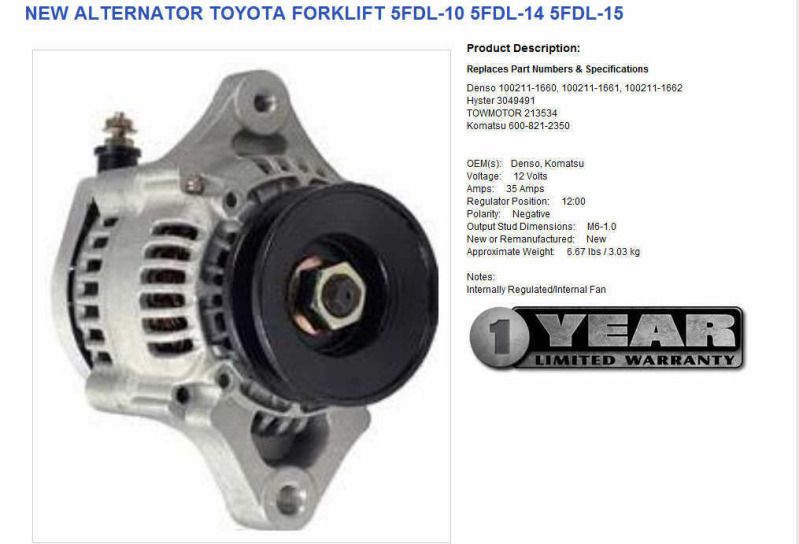

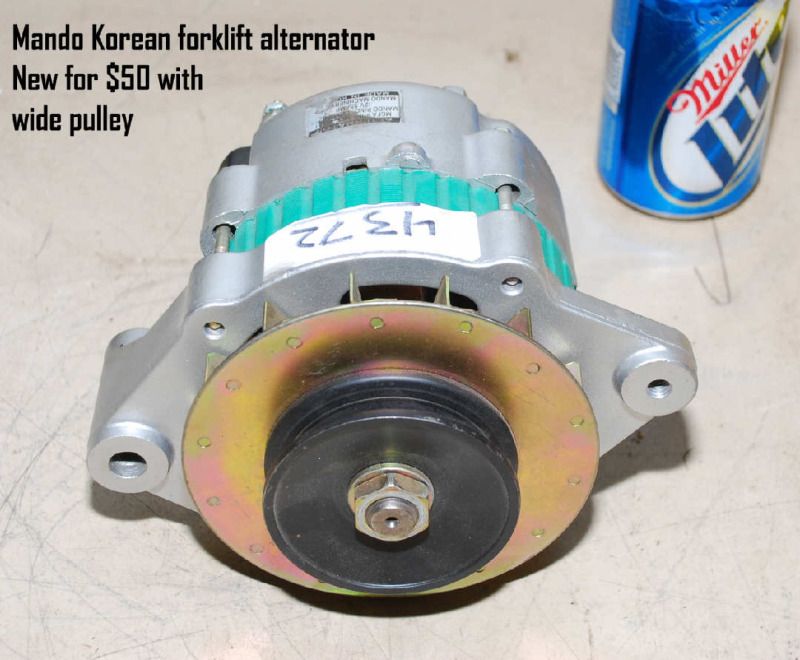

There are many heavy duty compact new alternators used on forklifts that can be found for as little as $45 and many come with the proper wide pulley that works well on Deere crawlers
