Another Factory Unauthorized modification...

Post by Ray III » Thu Sep 17, 2009 6:31 pm

There is a widget bolted to the bellhousing of the 420 that the engine clutch quadrant (fork) pivots on. This is secured by a mischievous snap-ring which has decided lately it will not stay on. After becoming intimate with the procedure for removing the engine and front end of the machine to replace a snap ring, I decided to make things a little more permanent.

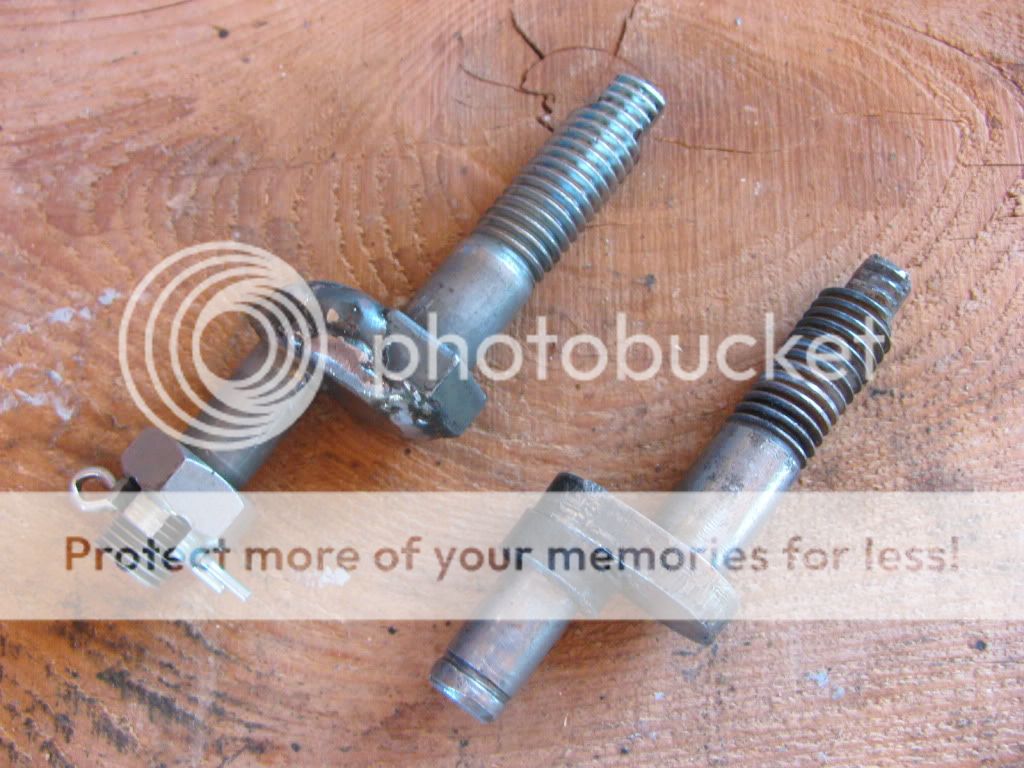

Replacement part is a 7/16" fine thread bolt welded to a 1/2" bolt, with a castle nut and hole drilled for a cotter pin.


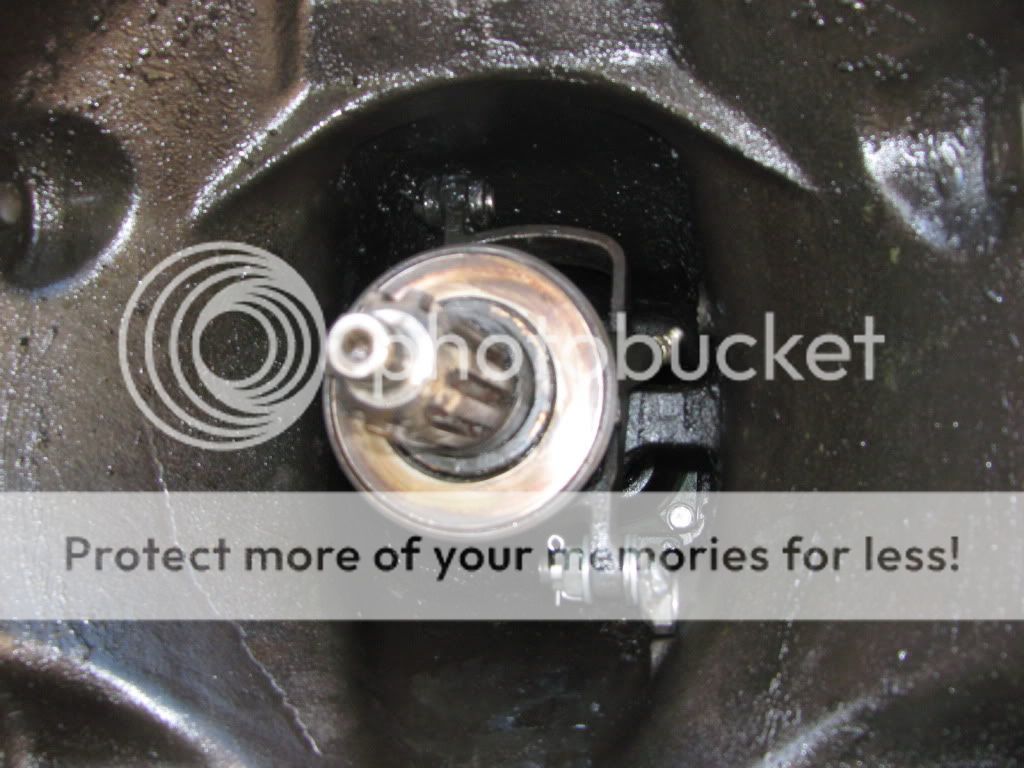

Installed in the bellhousing...

Top
User avatar
JD440ICD2006
350 crawler
350 crawler
Posts: 1113
Joined: Tue Aug 22, 2006 3:57 pm
Location: South Carolina

Post by JD440ICD2006 » Thu Sep 17, 2009 7:20 pm

Awesome engineering!
1959 JD 440ICD w/64 Power Angle Tilt Blade
1959 JD 440ICD w/63 Manual Angle Blade
1959 JD 440IC w/602 Manual Angle Blade
1959 JD 730D W SE (many options)
1950 JD M S w/M-20 Mower
1952 JD M W
1955 FORD 640 (burns the most fuel)
Top
User avatar
Lavoy
Site Admin
Site Admin
Posts: 11108
Joined: Sun Apr 03, 2005 8:32 pm
Location: North Dakota
Contact:
Contact Lavoy

Post by Lavoy » Thu Sep 17, 2009 8:50 pm

Would you believe I repaired one of those once from the rear end? We pulled the trans and finals off of a 420 loader from the rear, and discovered that the snap ring had fallen off. Somehow we managed to get a washer over the stud, and I reached my arm up inside of the center section with the wire welder stinger and welded it on. Of course, a week later, we ended up pulling the engine because the clutch was bad anyhow.
Lavoy
